Codec ip configuration problem

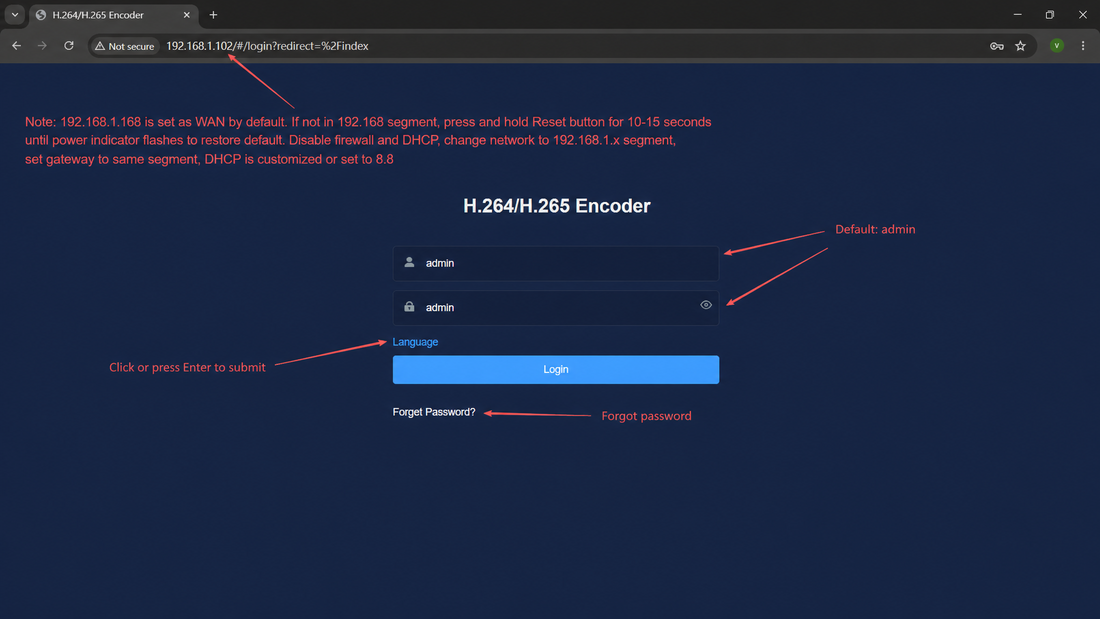

1. In general, video encoder/decoder devices are configured with a default IP address. The default IP address of our device is 192.168.1.168, and the default username and password are both admin.

When a computer attempts to access multiple devices within the same local network that share identical IP addresses, network adapter configuration conflicts may occur. In such cases, the system may only establish communication with one of the devices, preventing access to the management interface of the others.

Therefore, before connecting the device for the first time, please ensure that there are no duplicate IP addresses within the local network environment.

2. There are several methods available to modify the device IP configuration. The most direct and recommended approach is to establish a direct connection between the device and a laptop or other smart device equipped with an Ethernet port using an Ethernet cable.

Once connected via Ethernet, the device can be accessed directly through the local network connection for configuration and management.

3. In many cases, the Ethernet adapter on a computer is configured to obtain network settings automatically through DHCP. Under this configuration, the computer may be assigned to a different subnet from the encoder/decoder device, resulting in the inability to access the device interface.

If this issue occurs, please disable DHCP (automatic configuration) and switch the network adapter settings to manual configuration. Then, assign the computer an IP address and gateway within the same subnet as the device. After completing these settings, access to the device can usually be restored successfully.

4. Another method is to modify the device network settings using dedicated tools or software utilities. Certain software applications are capable of scanning and detecting all devices within the same local network and provide functions for editing device parameters.

After broadcasting a discovery signal, the software will receive responses from available devices on the network. Users can then select the target device and modify its IP address and subnet settings to match the computer’s wireless network configuration. Once authorization or credential verification is completed, the device IP settings can be updated successfully.

This method does not require a direct Ethernet connection or modification of the computer’s default network configuration, making it relatively convenient. However, its effectiveness may still be limited by the capabilities or restrictions of the computer’s network adapter.
