1080P 60fps VGA video encoder with VGA local loopback, supports SRT, RTMP, RTSP, UDP multicast, HTTP, HLS, and ONVIF, compatible with IPTV, real-time streaming encoder for YouTube, Facebook, and Twitch.

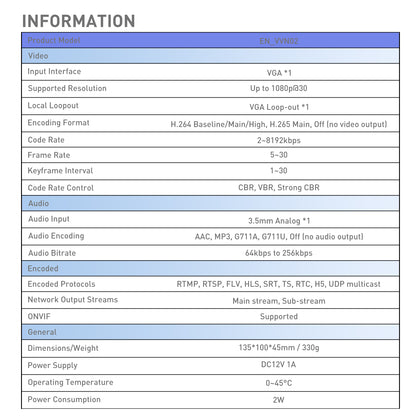

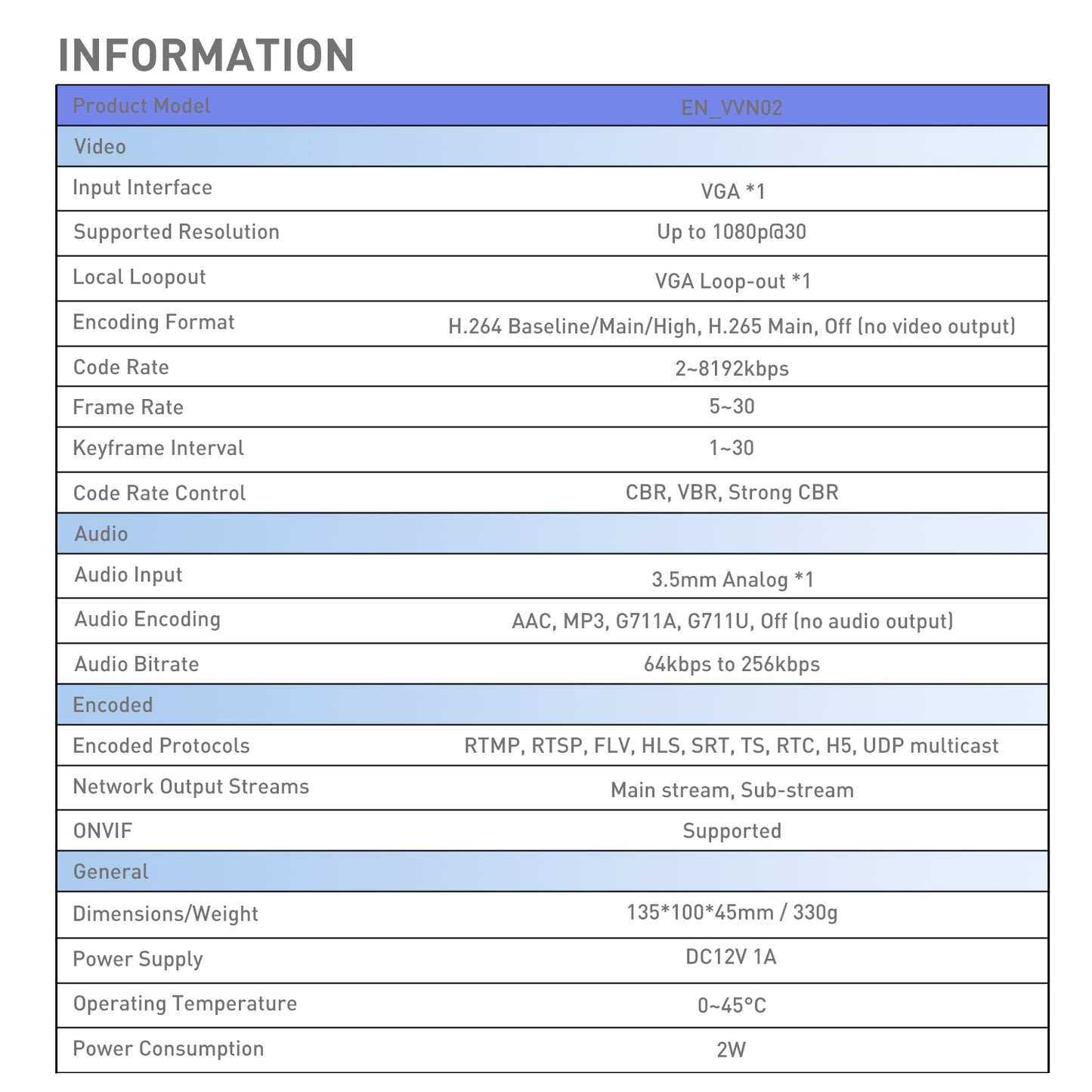

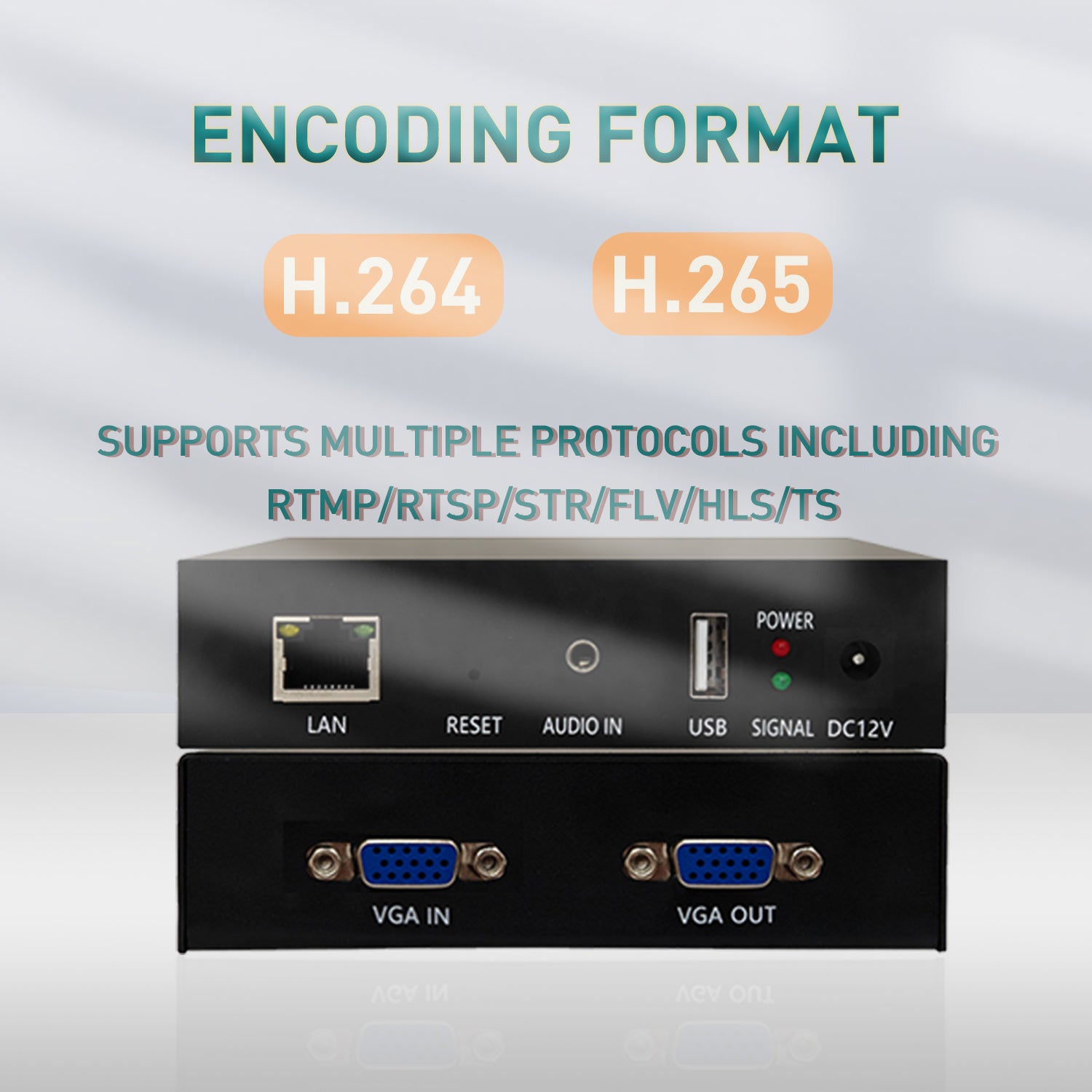

Designed specifically for VGA sources, this device supports H.264/H.265 dual encoding, converting up to 1080P@60 input to 1080P@30 HD output, effectively saving bandwidth. It is compatible with mainstream global protocols such as RTMP, RTSP, SRT, HLS, UDP Multicast, and ONVIF, enabling simple simultaneous streaming across multiple platforms. Its unique proxy restream function supports stream extraction and protocol conversion, making it ideal for upgrading traditional VGA devices to webcasting or monitoring systems.

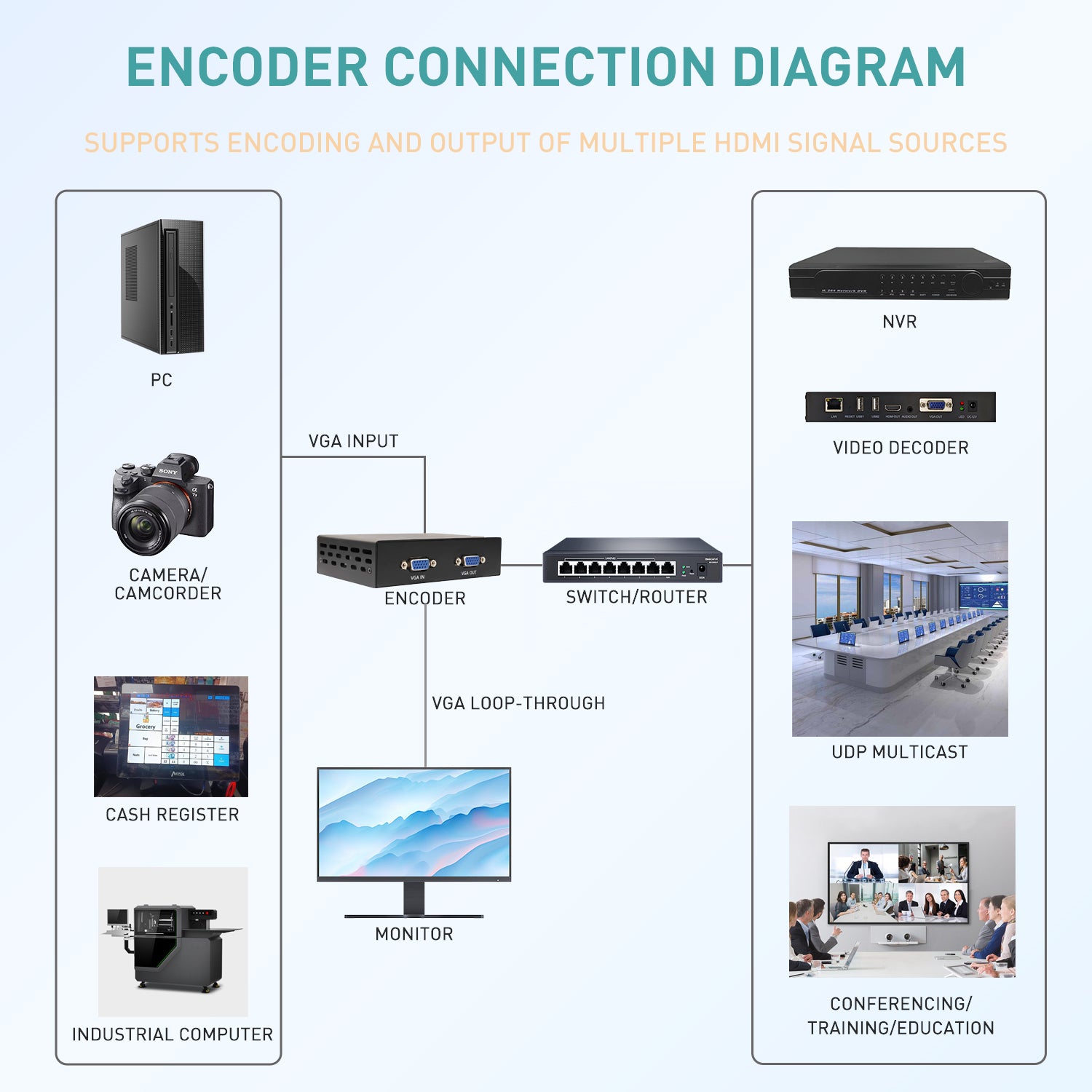

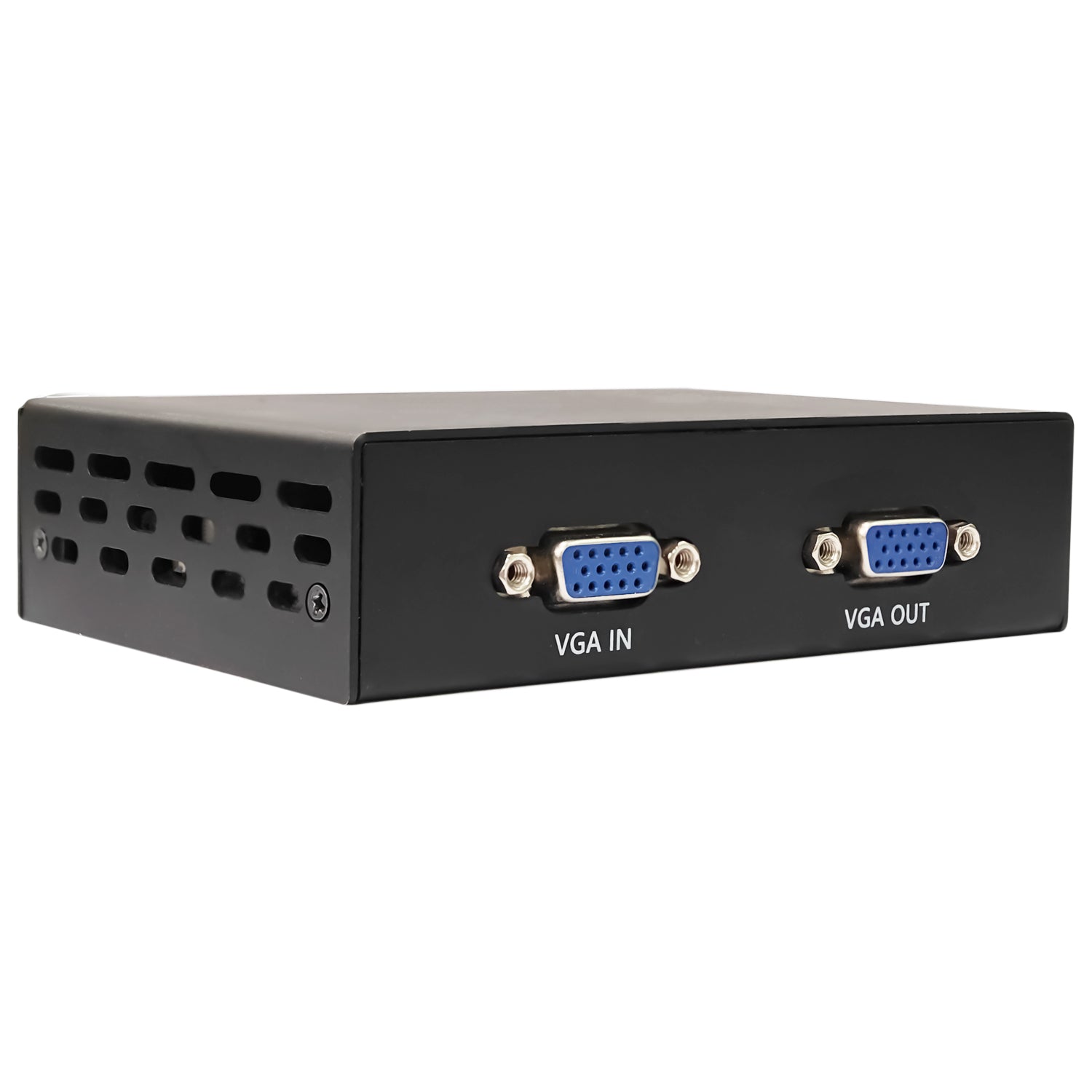

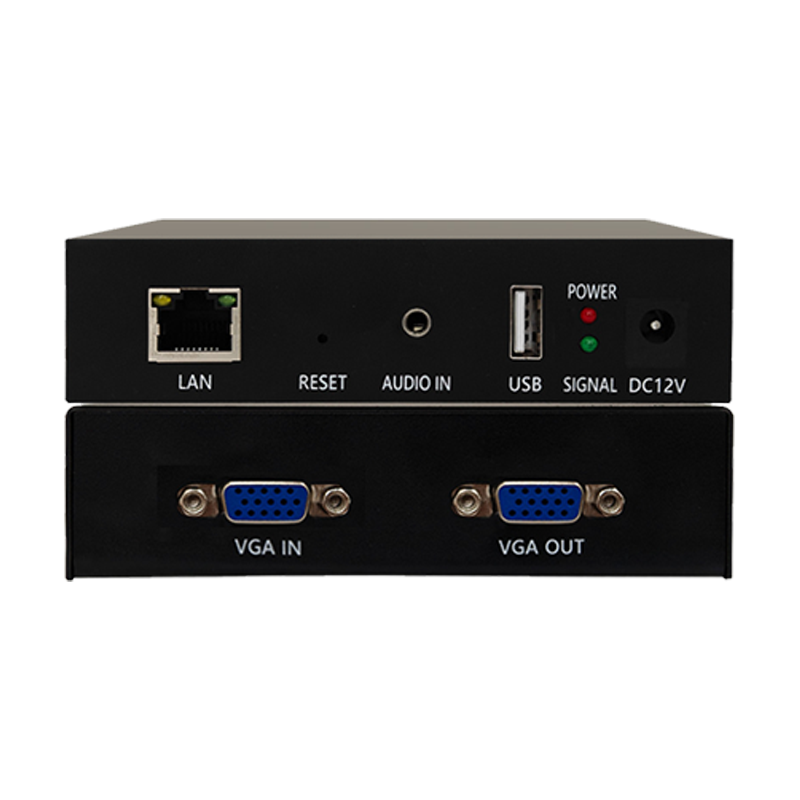

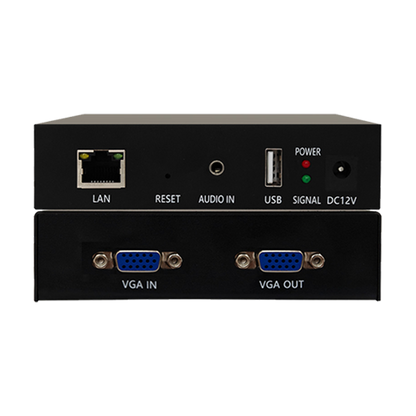

It features one VGA input and one local VGA loopback output port; the loopback resolution matches the input (up to 1080P@60), ensuring latency-free on-site monitoring. Audio input uses a 3.5mm analog interface, supporting stereo and independent left/right channel selection, with adjustable gain (-50~20dB). Audio encoding supports multiple formats, including AAC and G711A/U, with selectable sampling rates of 44.1K/48K, meeting professional broadcast-grade audio requirements.

Designed specifically for security monitoring, it perfectly supports the ONVIF standard protocol, seamlessly connecting with major NVR brands for remote centralized management and recording. It supports master/slave dual-stream output, flexibly adapting to monitoring and real-time streaming needs under different bandwidth conditions. Whether building a new monitoring system or integrating existing VGA cameras, it provides a stable video transmission solution.

It offers powerful image adjustments, supporting 90°/180°/270° rotation and mirroring. Network output specifically supports vertical screen mode, easily handling the real-time streaming needs of mobile short video platforms. Built-in video cropping allows for customized areas to focus on key content. It supports OSD effects such as text, images, and timestamps for convenient information display and branding.

We understand that stable device operation is crucial to your business. Purchasing this product includes professional technical consulting services on protocol configuration, NVR integration (compatible with major brands), network streaming, audio debugging, and more. We promise rapid response to after-sales requests, ensuring a worry-free installation and use experience. Our support team is always ready to provide any technical assistance.

This product is ideal for customers with numerous traditional VGA devices (such as old computers, medical imaging equipment, industrial cameras, multimedia lecterns), system integrators, and educational institutions. It solves the pain point of VGA signals not being able to be directly transmitted over a network or connected to modern digital systems, providing an independent hardware encoding solution. It is widely used in scenarios such as hospital telemedicine, school multimedia classrooms, factory monitoring, and conference room live streaming.

Easy configuration is achieved through a web interface. It features powerful recording and playback capabilities, supporting direct recording to external USB storage or long-term archiving via NFS or CIFS network storage. It supports intranet mapping and H5 player embedding for easy remote access and network integration. Its low-power design (approximately 2W) ensures stable operation 24/7, with an operating temperature range of 0~45°C.
